86175 Digital Color Difference Meter Hunter Lab Colorimeter 20mm 45/0 Textile Aperture

Product Categories
Shenzhen Bestone Industrial Co.Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

86175 Digital Color Difference Meter Hunter Lab Colorimeter 20mm 45/0 Textile Aperture

Price : Negotiable

Transport Package : Box and Carrying Bag

Packaging Details : box

Trademark : BESTONE

Supply Ability : 1000pcs/month

Delivery Time : 5-10 working days

Light Source : Light Source D65, Field of View 10

Light source : Full spectrum LED

Origin : China

Spectral range : 400-700nm

Payment Terms : T/T

Repeatability : ΔE*ab ≤ 0.03

HS Code : 9027899090

Place of Origin : CHINA

MOQ : 1

Model Number : 86175

Brand Name : Bestone

Model NO. : 86175

Illumination Geometry : 45°/0°

Specification : 20cmx8cmx12cm

Certification : CE,ROHS

Measuring Aperture : 20mm

Weight : 225g

Contact Now

86175 Digital Color Difference Meter Hunter Lab Colorimeter 20mm 45/0 Textile Aperture

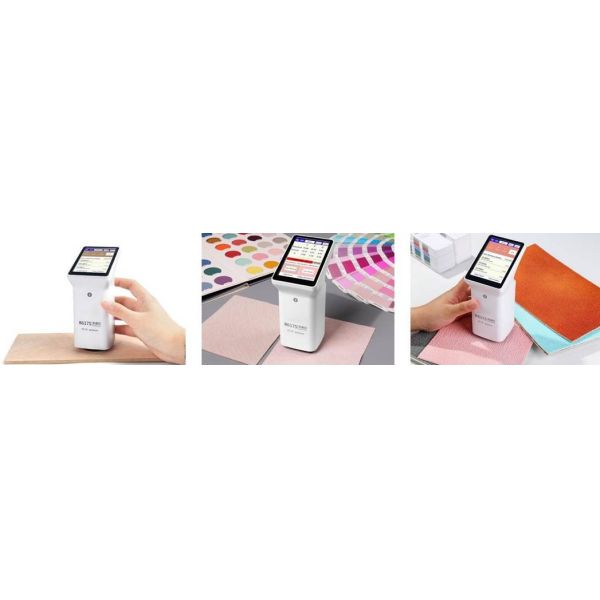

86175 is a handheld 45/0 illumination geometry colorimeter with a large 20mm measuring aperture, a 3.5-inch IPS color capacity touch screen, and can connect with mobile phone or PC. This device can work independently without connecting APP on mobile phone or PC software. Several color charts help matching the closest color number of scanned color in short time. The device also has color comparison function, supporting multiple methods of adding standard. Availability of setting threshold of color difference ensures QC quick inspection. The device can connect APP and PC software, expanding its functions such as color sharing and printing report.
Applications
As it can measure larger area to acquire more even color data with its large 20mm measuring aperture, LS175 has wide application in color measurement and widely used in industries of textiles, leather, fabrics and wood furniture.
86175 Digital Color Difference Meter Hunter Lab Colorimeter 20mm 45/0 Textile Aperture
Key Features
  • Large measuring aperture, higher precision:
    As it can measure larger area with its large 20mm measuring aperture, the device ensures higher precision on the test results as it acquires more even color data when measuring textured or rough surface materials.
  • Touch screen makes measurement convenient:
    The device adopts a 3.5-inch IPS color capacity touch screen, no need to operate by pressing button. It offers smooth user operation experience and interactive interface, simple operation.
  • Built-in multiple electronic color charts:
    The device provides multiple sets of electronic color charts applicable for many industries (RAL, Pantone, NCS, etc.) can quickly match 3 closest serial numbers in the color charts with precision rate over 90%, keeping your hands free from carrying heavy color charts.
  • Large storage space:
    Massive storage space, users can create personalized color databases and easily enter industry-specific color card information.
  • CIE Lab color deviation indication:
    Only two clicks on the screen are needed to complete a color difference measurement. The colorimeter provides the color deviation indication of the three color channels of CIE Lab and assistance for color mixing.
  • Various ways to complete color comparison:
    You can enter the values of the standard color in the color compare interface or just add from the personal color chart and standard color chart. No need to worry about ageing and discoloration of samples.
  • Achieve more efficient quality control:
    In the color difference comparison mode, you can set a color difference threshold, the colorimeter shows pass/fail, ΔL, Δa and Δb -- especially for rigorous industrial settings.
  • Good Repeatability:
    Good repeatability, ΔE*ab≤0.03, the colorimeter can pass the inspection of authoritative metrology institute.
  • Equipped with mobile App and PC software:
    The instrument can be used with mobile APP or PC software for online measurement, covering Android, iOS and Windows systems, to help users to data color management and generate test reports.
  • Support multi-channel color sharing:
    Enterprise users can import and export color data through the APP or PC software, manage their own color card information library and color formulas, and share the data through WeChat, QQ, email, etc. to the company or customers.
  • Multiple color spaces and color difference formulas:
    Provide multiple color spaces and color difference formulas for different industries, including Lab, LCh, ΔE*ab and others.
  • Spectral reflectance curves:
    Provides professional spectral reflectance curves from which the user can obtain information on the hue, saturation and shade of the sample color.
  • Equipped with measurement positioning board:
    The colorimeter is equipped with a measurement positioning board to meet the needs of precise alignment, and make the measurement more accurate.
  • Whiteboard calibration:
    The bottom cover integrates a calibration white tile, so there is no need to worry about losing it. No need for tedious operation.
  • Easy to carry:
    Smart and portable, easy to store and carry; stable body, ergonomic design, ensuring colors anytime, anywhere.
  • Advanced color sensor, Outstanding quality:
    The colorimeter adopts chip-level color sensor AS7261 newly launched by ams AG, who's precise XYZ tristimulus color sensing function simulates the human eye response curve of the standard observer defined in the CIE1931 and CIE1976 color systems.
  • Full spectrum LED light source:
    Adoption of full-spectrum LED light source ensures sufficient spectral distribution in the visible range, avoiding the spectral deficiency of white LEDs in specific wavelength bands.
86175 Digital Color Difference Meter Hunter Lab Colorimeter 20mm 45/0 Textile Aperture 86175 Digital Color Difference Meter Hunter Lab Colorimeter 20mm 45/0 Textile Aperture 86175 Digital Color Difference Meter Hunter Lab Colorimeter 20mm 45/0 Textile Aperture
Technical Specifications
Parameter Value
Illumination geometry 45/0 (45° annular illumination, 0° viewing angle)
Illumination light source Full spectrum LED light source
Spectral Range 400-700nm
Spectral Interval 10nm
Measuring aperture 20mm
Measurement conditions Light source D65, field of view 10°
Measuring time 1s
Color space CIE Lab,LCh,Luv,Yxy,CMYK,RGB,YI-98 WI-98,WI-Ganz,WI-Hunter,WI-R457,HSL,HSV,ITA,Spectra
Color difference formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE*cmc(1.4:1)
Repeatability Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration)
Dimension 86mm X 62.5mm X 158mm
Weight 225g
Power supply Rechargeable lithium battery 3.7V@4000mAh, can measure 10,000 times continuously under full charge
Display 480×320 dot matrix IPS color screen
Language Simplified Chinese, English, Turkey
Charging port USB(Type-C)
Data transmission USB, Bluetooth
Operating temperature range 0~45℃,0~85%RH(no condensation)
Storage temperature range -25~55℃,0~85%RH(no condensation)
Package Contents
No. Description Quantity Unit
1 Colorimeter 1 Set
2 USB cable 1 pcs
3 Cleaning cloth 1 pcs
4 Locating plate 1 pcs
5 User manual 1 pcs
6 Certificate / Warranty card 1 pcs
7 Calibration Report 1 pcs
